Legrand UPS
Industrial Three Phase UPS System

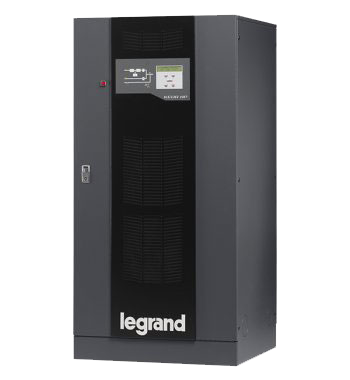

Legrand KEOR HP UPS
The Legrand KEOR HP is a high-capacity three-phase Online Double Conversion UPS engineered for data centers, industrial facilities, telecom infrastructure, healthcare systems, and mission-critical environments. Featuring advanced IGBT technology, DSP control, high efficiency operation, and scalable parallel redundancy, it delivers reliable and continuous power protection for large-scale critical applications.
60kVA to 800kVA Power Range
Online Double Conversion Technology
Three Phase Input / Output (3/3)
IGBT Rectifier & Inverter Technology
Parallel Redundancy up to 6 Units
Up to 98% ECO Mode Efficiency
DSP Digital Signal Processor Control
SNMP, USB & RS232 Communication
Technical Specifications
Capacity Range
60kVA – 800kVA
UPS Technology
Online Double Conversion
Input / Output
3 Phase / 3 Phase
Input Voltage Range
320V – 480V
Output Voltage
380V – 415V
Frequency
50 / 60 Hz
Output Power Factor
0.9
Efficiency
94% (98% ECO Mode)
Parallel Configuration
Up to 6 UPS Units
Communication
USB, RS232, SNMP
Protection Rating
IP20
Applications
Data Centers, Industry & Critical Loads
