Legrand UPS
Three Phase Online UPS System

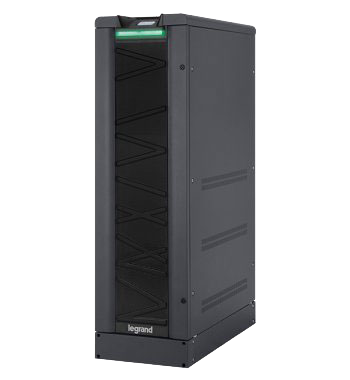

Legrand KEOR T EVO UPS
The Legrand KEOR T EVO is a high-efficiency three-phase Online Double Conversion UPS designed for data centers, industrial applications, telecom infrastructure, commercial facilities, and mission-critical environments. Built with advanced Transformer-Free Architecture and 3-Level IGBT technology, it delivers continuous clean power, high reliability, low harmonic distortion, and superior energy efficiency for critical loads.
10kVA to 60kVA Power Range
Online Double Conversion Technology
Three Phase Input / Output (3/3)
3-Level IGBT Rectifier & Inverter
Output Power Factor = 1
Up to 96% Efficiency
Parallel Redundancy up to 6 Units
3.5” TFT Touchscreen Display
Technical Specifications
Capacity Range
10kVA – 60kVA
UPS Technology
Online Double Conversion
Input / Output
3 Phase / 3 Phase
Input Voltage Range
320V – 480V
Output Voltage
380V – 415V
Frequency
50 / 60 Hz
Output Power Factor
1.0
Efficiency
Up to 96% (99% ECO Mode)
Battery Compatibility
Internal & External VRLA Batteries
Communication
RS232, SNMP, Dry Contacts
Display
3.5” TFT Touch Panel
Applications
Data Centers, Industry & Critical Loads
